SPECIFICATIONS

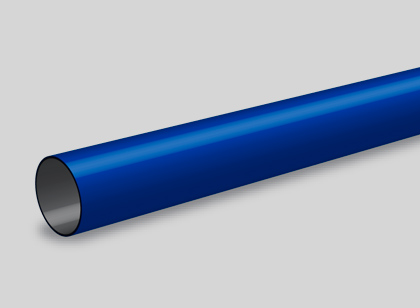

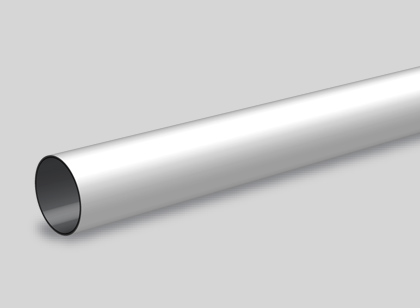

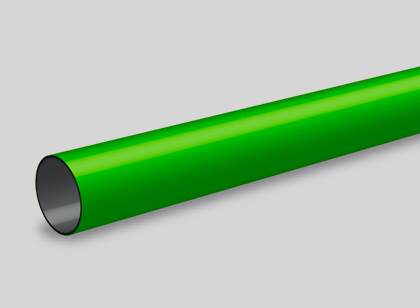

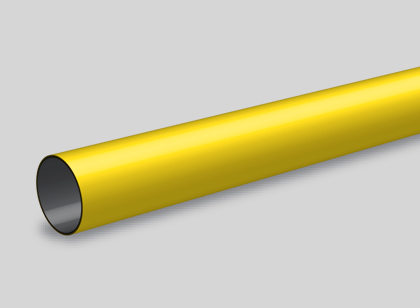

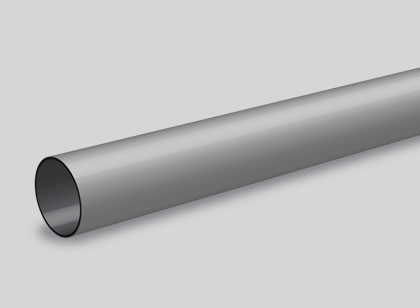

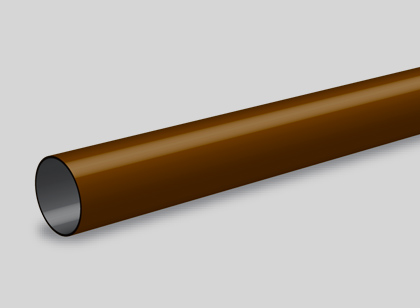

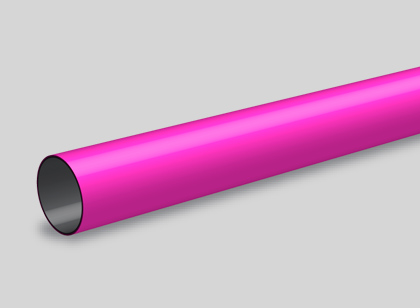

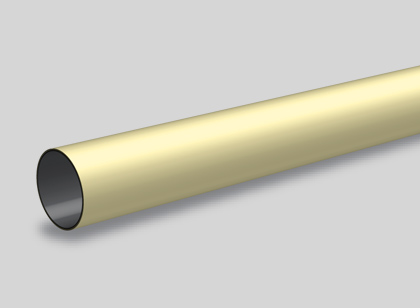

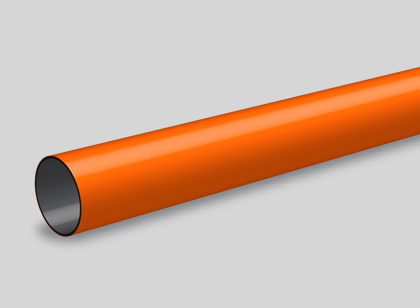

The pipes are made of steel and coated with ABS resin obtaining therefore excellent durability, chemical and impact resistance, strength and lightness.

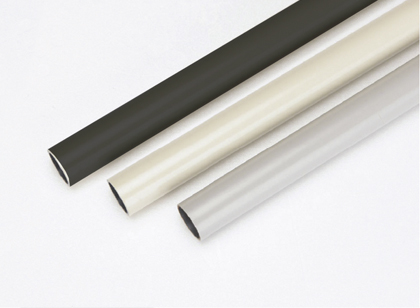

ANTISTATIC Surface resistance 108Ω ~ 1010Ω

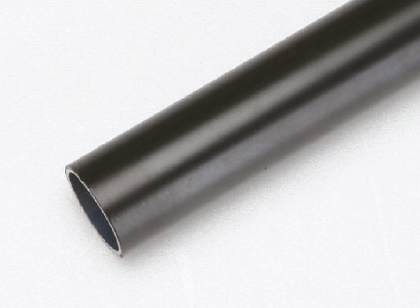

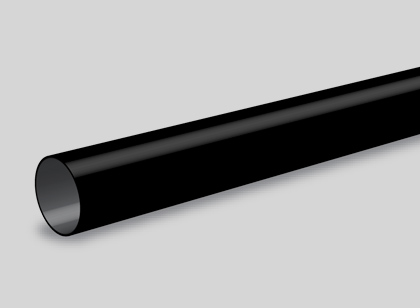

CONDUCTIVE Surface resistance ~106Ω

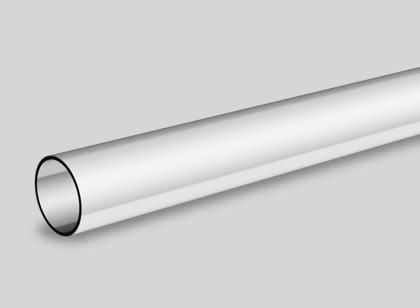

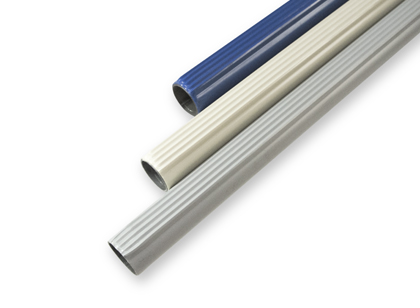

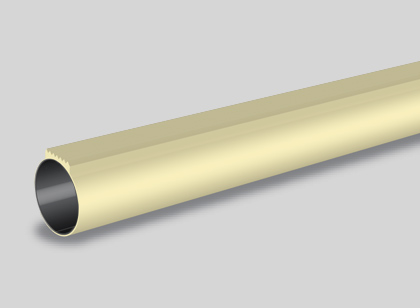

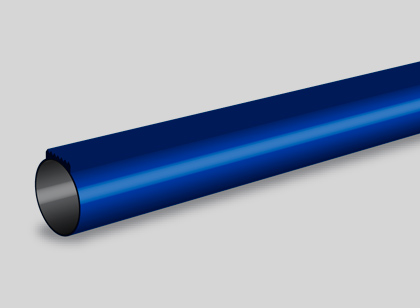

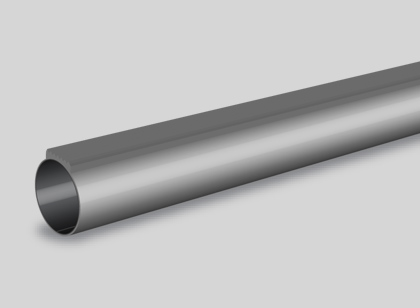

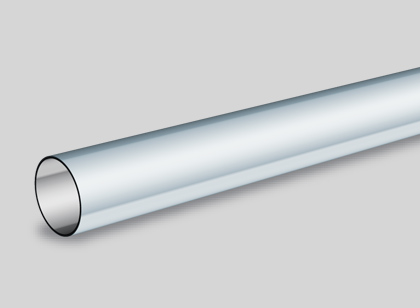

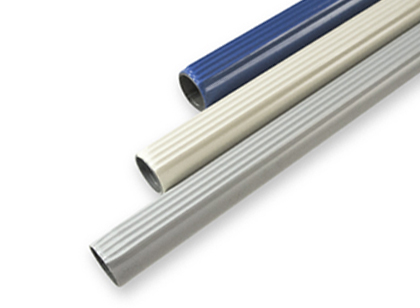

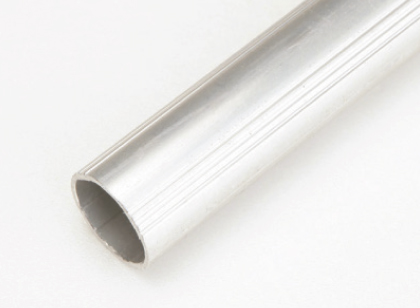

| Pipe | Standard | Stainless Steel | Aluminium | ESD | Slide |
| Thickness (t) | 0.7 / 1.0 / 1.4 / 2.0 | 0.7 / 1.1 | 1.1 | 1 | 0.7 / 1.0 / 1.4 / 2.0 |
| Material | Steel ABS Resin (1mm) |
Stainless Steel | Aluminium | Steel ABS Resin (1mm) |
Steel ABS Resin (1mm) |
| Diameter | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Weight | 505gr/m / 676 gr/m / 935 gr/m / 1,265 gr/m | 473 gr/m / 734 gr/m | 380 gr/m | 676 gr/m | 596gr/m / 767 gr/m / 1,094 gr/m / 1,356 gr/m |
| Length | 4 m | ||||
